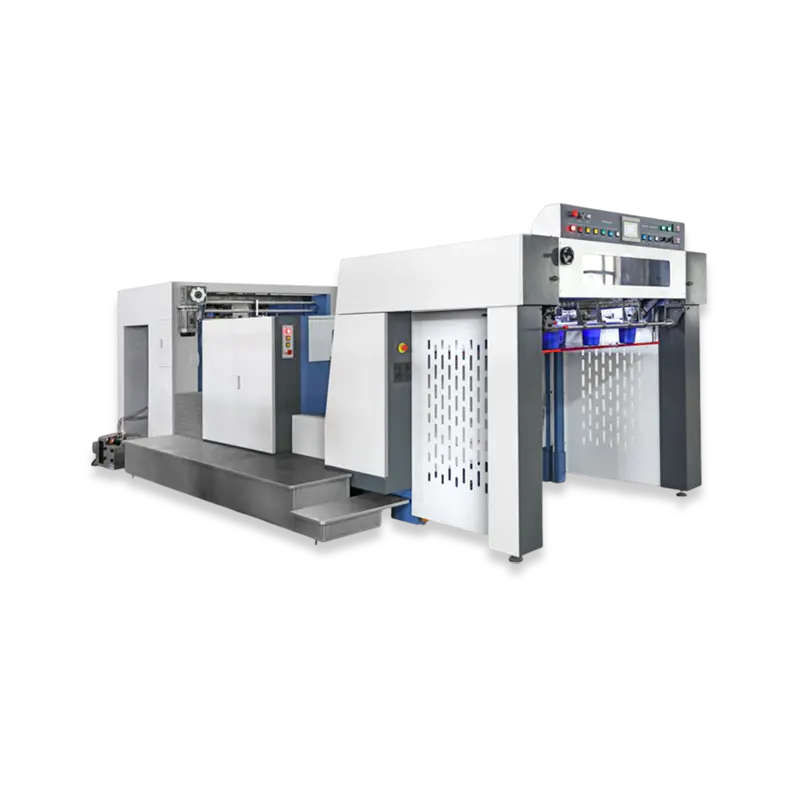

Automatic paper embossing machines, pivotal in luxury packaging, security printing, and tactile graphic production, rely on a synthesis of high-resolution motion control, advanced material handling, and real-time feedback mechanisms to imprint intricate raised or recessed patterns on substrates ranging from delicate rice paper to polymer-laminated cardstock. At the core of their operation lies the embossing die assembly, typically fabricated from hardened tool steel or tungsten carbide, engineered with micron-level tolerances (≤±5 µm) to replicate designs spanning 10–500 µm in depth. Modern systems employ servo-driven actuation paired with piezoelectric force sensors, enabling dynamic adjustment of embossing pressure (50–2,000 N/cm²) to accommodate substrate density variations without tearing or under-compression. This adaptability is critical when transitioning between materials like handmade cotton paper (45 gsm) and synthetic blends (300 gsm) within a single production run.
The synchronization of thermal and mechanical subsystems further refines output quality. For complex patterns requiring heat-assisted embossing (common in foil-stamped security features), machines integrate radiant infrared modules with wavelength-specific emitters (1,200–1,600 nm) to selectively soften cellulose fibers or adhesive layers to a glass transition state (60–80°C) before pressure application. Closed-loop temperature control, governed by pyrometers and PID algorithms, maintains ±1.5°C stability across the embossing zone, preventing charring or incomplete adhesion. Simultaneously, vacuum platens with multi-zone suction (up to -90 kPa) immobilize substrates during high-speed cycles (120–150 impressions/minute), eliminating misalignment even with hygroscopic materials prone to dimensional instability.
Software advancements play an equally vital role. Machine vision systems equipped with 20-megapixel CCD cameras and edge-detection algorithms perform pre-emboss substrate mapping, identifying grain direction, thickness anomalies, or pre-printed elements to adjust die trajectory dynamically. This prevents over-embossing on existing ink layers and compensates for material stretch during feeding. In security applications, such as currency or certificate production, synchronized dual-level embossing heads create latent images detectable only under specific lighting angles—a feature achieved through CNC-milled diffractive optical elements (DOEs) embedded within dies.
Energy efficiency is optimized via regenerative braking systems in servo motors, recapturing kinetic energy during die retraction, and reducing net power consumption by 18–22% compared to traditional cam-driven models. Furthermore, self-lubricating linear guides and ceramic-coated rollers minimize particulate generation, critical in cleanroom-compatible versions used for embossing medical device packaging. Emerging iterations now incorporate AI-driven predictive maintenance, analyzing acoustic emissions from drive trains to preempt bearing wear or belt slippage, ensuring ≤0.1% downtime in 24/7 industrial settings. As sustainable material usage gains priority, these machines are being adapted for dry embossing processes that eliminate solvent-based adhesives, instead utilizing ultrasonic vibration (20–40 kHz) to molecularly bond biodegradable films to paper substrates.
